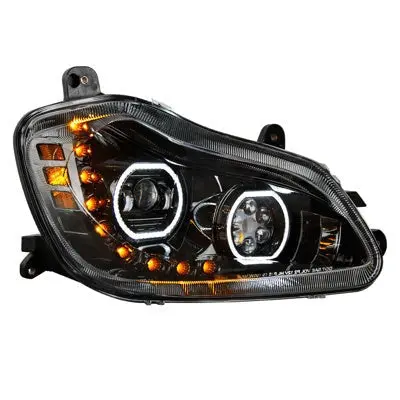

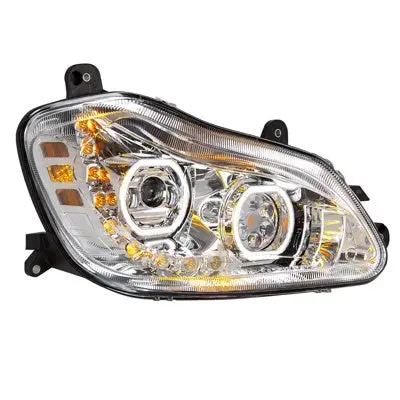

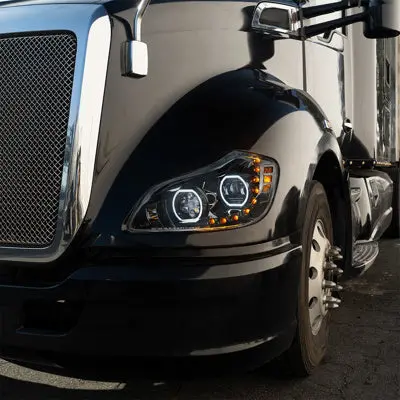

10-LED Headlight – Right-Side Replacement for Kenworth T680 (2013–2021)

Description

• All LED 12-24 volt headlight assembly for Kenworth T680 trucks.
• 9 LED amber turn signal with sequential operation.
• 100 LED white halo as Daytime Running Lights.
• 6 LED amber sidemarker light with P2 rating.
• Easy plug-in design, plugs into existing headlight wiring harness.
• Bold and unique headlight design, patent #D907,260.
• LED Low beam: 2100 Lumens, 2.5 Amps @ 12VDC, 1.25 Amps @ 24VDC.
• LED High beam: 3700 Lumens, 7.0 Amps @ 12VDC, 2.75 Amps @ 24VDC.
• LED turn signal light: 600 lumens, 1.69 Amps @ 12VDC, 0.85 Amps @ 24VDC
• LED position light: 300 lumens, 0.17 Amps @ 12VDC, 0.08 Amps @ 24VDC
• Removable load resistor pre-installed. Please remove if experiencing light dimming or not turning on.
• DOT/SAE, FMVSS 108.
