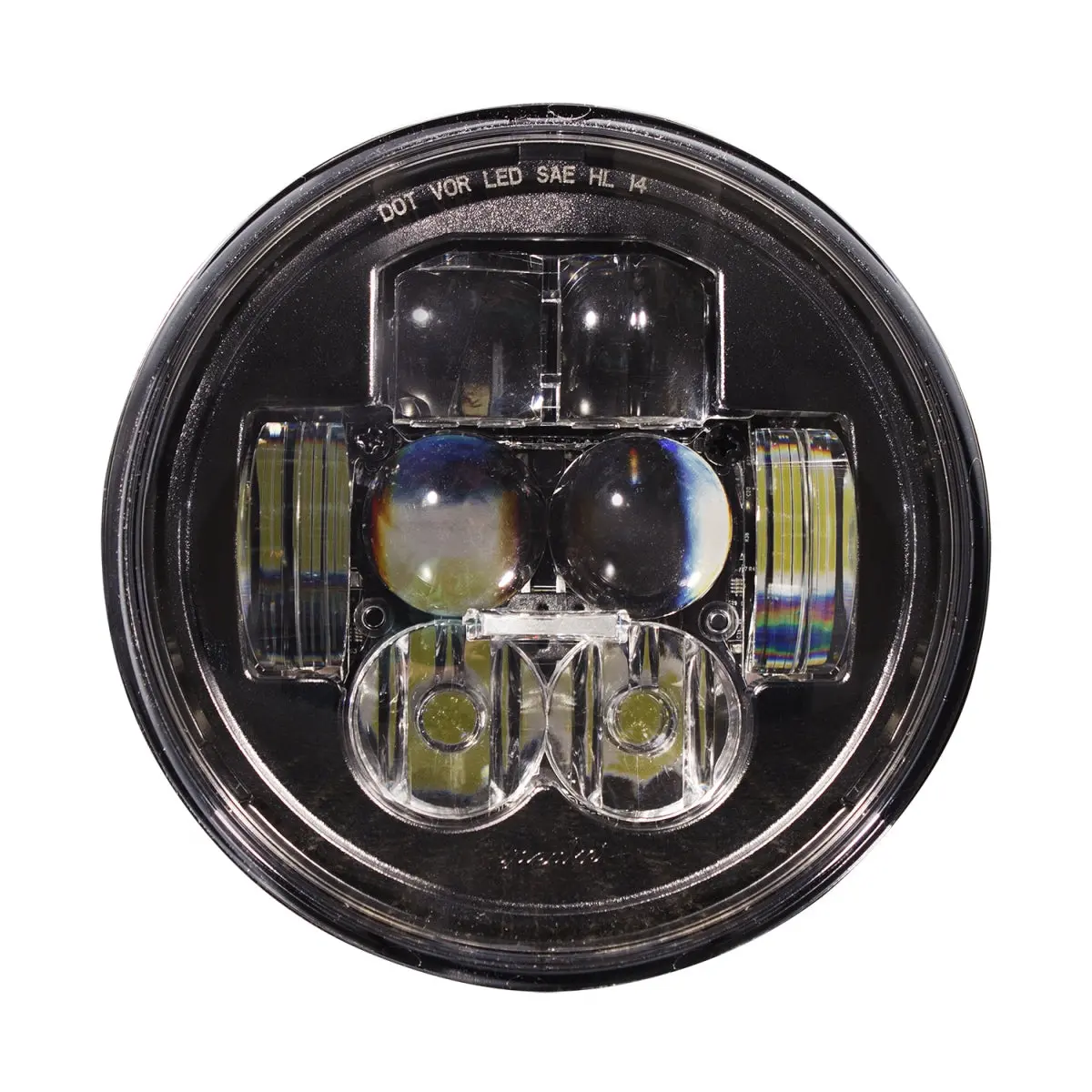

J.W. Speaker 5-3/4″ 8630 Evolution Headlight – Compatible with 359-Style Headlight Housings

Description

Overview
Designed for OEMs and aftermarket customers alike, the Model 8630 Evolution offers an upgraded replacement solution for 5.75″ (PAR46) sealed beam headlights.

Features

• Combined high and low beam functions
• Newer design boasts a 50% increase in high beam intensity
• Easy plug and play installation with Delphi wire connector
• Front position and DRL functions utilize a new outer ring at high intensities
• these are right handed side lights for usa.

Summary
Using high-quality LEDs to provide superior output levels, the Model 8630 Evolution delivers improved performance over our original Model 8630 LED headlight.

PRODUCT INFORMATION
Description 12-24V DOT LED High & Low Beam
Headlight
Height 142.24 mm / 5.6 in
Width 142.24 mm / 5.6 in
Depth 86.36 mm / 3.4 in
Outer Lens Material Polycarbonate
Outer Lens Color Clear
Housing Material Die Cast Aluminum
Housing Color Black
Bezel Color Black
Minimum Operating
Temperature
-34 °C / -29.2 °F
Maximum Operating
Temperature
49 °C / 120.2 °F
Connector or Wiring Integral Connector in Housing simulating
Delphi 12124107
Mating Connector Delphi 12052848
