TLED-H119 7-Inch Heated LED Reflector Headlight with Illuminated Position Accent – Dual-Beam (High/Low) | 2200 Lumens

Description

• Significantly Brighter than Halogen Headlights
• White Glow Position LED Accent
• Heated Lens Activates at 46.4° Fahrenheit / 8° Celsius
• Features a Universal H4 Connector
• Includes H4 Conversion Plug (TPIG-H1)
• 2 Year Warranty

• Product Description	7″ Heated LED Reflector Headlight with Glow Position LED Accent – Combination High & Low Beam
  Style	Round
  Size	7″
  Sold	Individually
  Compliance	CMVSS-108, DOT/SAE, FMVSS-108
  Bulb Type	LED Reflector
  Function 1	Combination High & Low Beam
  Function 2	Glow Position LED Accent
  Function 3	Heated Lens
  LED Power	Heat Activation High: 33.3 Amps, Heat Activation Low: 25.6 Watts, High: 20.5 Watts, Low: 12.8 Watts
  Raw Lumens	High: 2200 Lumens, Low: 2200 Lumens
  Effective Lumens	High: 1600 Lumens, Low: 1000 Lumens
  Operating Voltage	9-35 Volts (DRL Compatible)
  Function 1 Amperage	High: 1.6 Amps, Low: 0.9 Amps
  Function 2 Amperage	Auxiliary Strip: 0.25 Amps
  Function 3 Amperage	Heat Activation: 1 Amp
  Diodes	Auxiliary Strip: 24 Diodes, High: 2 Diodes, Low: 1 Diode
  Interior Color	Chrome
  Lens Color	Clear
  Lens Material	Polycarbonate
  Color Temperature	5500-6500 Kelvin
  Housing Material	Aluminum Alloy
  Waterproof Rating	IP67 Rating
  What’s Included	Headlight Conversion Plug

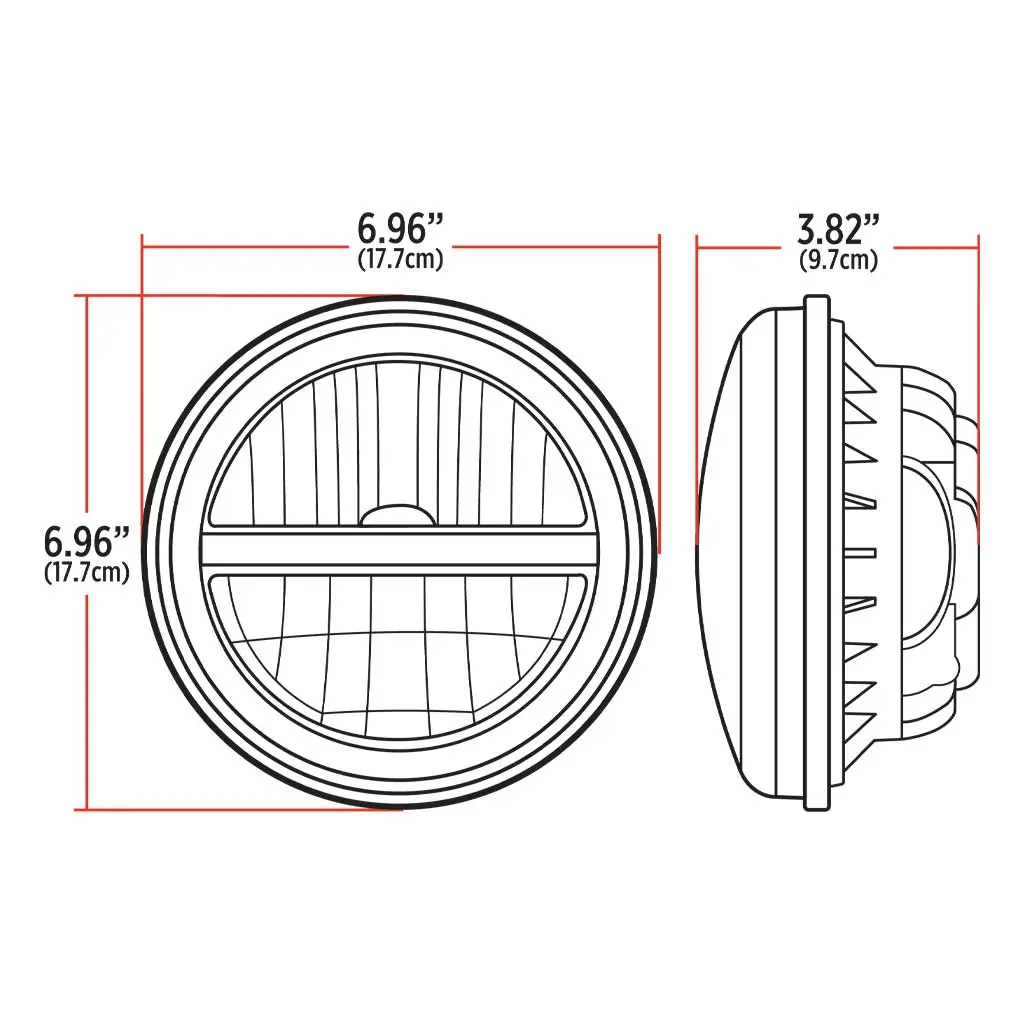

  Product Dimensions	6.96″L x 3.82″W x 6.96″H
  Package Dimensions	7″L x 4.2″W x 7.46″H
  Warranty	2 Year Warranty
  Current Draw @ 12.8 Volts	Heat Activation High: 2.6 Amps, Heat Activation Low: 2 Amps, High: 1.6 Amps, Low: 1 Amp
