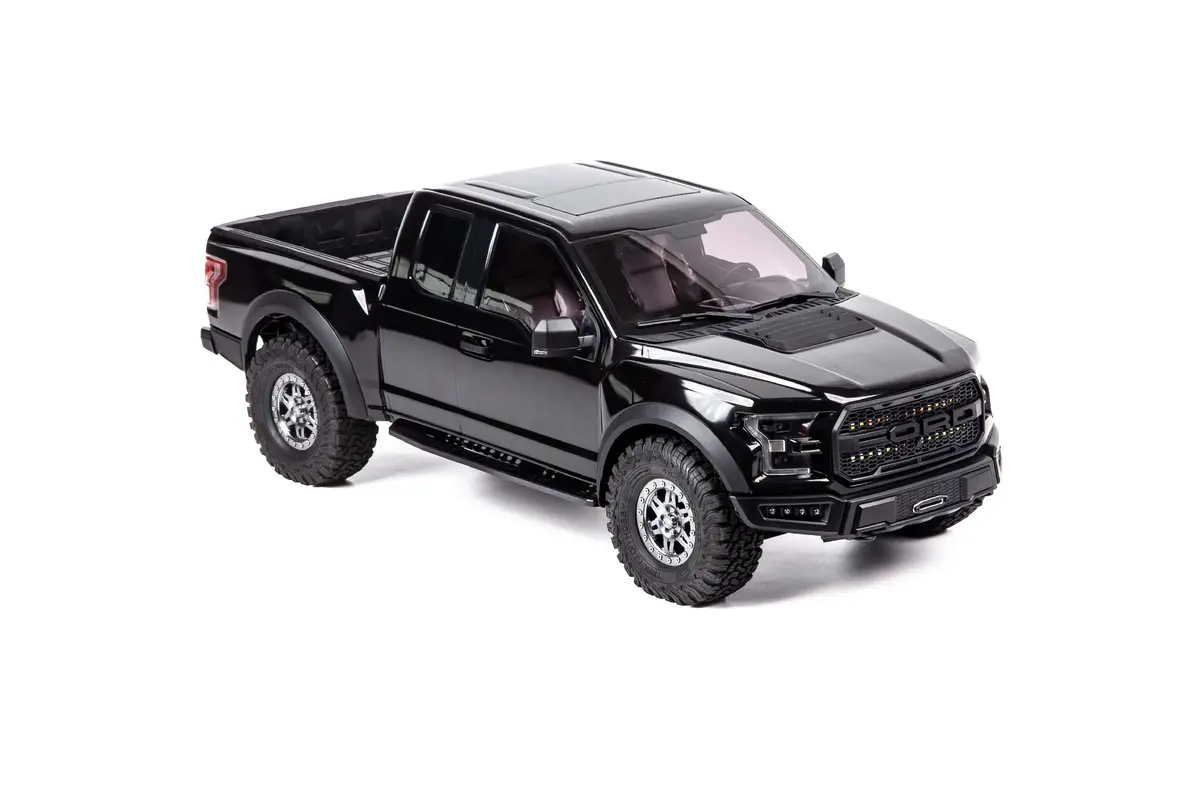

Traction Hobby 1:8 Scale Ford Raptor F-150 Licensed RC Off-Road Crawler – Battery and Charger Not Included

Description

Brand
Tractionhobby (Ford Licensed)
Model
1:8 Raptor F150 IFS
Colors
Silver/Blue/Black
Battery Size & Capacity
150mmx46mmx40mm (Available 2-4S)
Car Dimension(Package)
695*280*255mm (770*360*330mm)
Wheelbase
421mm
Wheel Track
222mm
Mini Ground Clearance
39mm
Approach/Passing/Depart
36°/32°/27°
N.W./G.W./Size Weight.
6.5KG/10.2KG/19KG
Tech Parameters & Specifications
Body & Chassis
Vacuum Moulding 1.5mm PC(Lexan) Body
1.5mm Steel C-Shape Chassis
Suspensions & Axles
Front Independent Suspension/Rear Solid Axle(Available Diff); Nylon Axle+CNC Axle Cover, Steel Rods
Diffs & Driving
Front/Rear Diffs Lock For Driving Control
RWD/FWD/4WD Driving Modes
Integrated Gearbox
High/Low Speed, Reversion, RWD/FWD/4WD
Metal Servo Pulling Broken Transmission
Available Motors
#775 Brushed Or 1:8 Brushless (D:46mm, L:75mm)
Adjustable Motor Gear Gap 12-20T, Equiped 14T
Steering System
Multi-links Rod, Servo Pulling Way
23Kg Metal HV Servo With 25T Metal Servo Arm
Shock Absorbers
Front: 81mm; Rear: 93mm
Full Metal, 550CST Shock Oil
Shafts & Rods & Gears
7mm Thickening Metal Shafts, 5mm Alloy Steel Rods, Metal Transmission Gear
Tyres/Wheel Hub
KO2 Tyre D: 120mm W: 42mm
2.2 Inch CNC Alu Hub
Simulation Parts
Lights. Wiper. Doorknob, Wing. Internal Ornaments, Top LED & Rear Gantry Crane
Others
Quick-released Body, XT60 ESC Plug To Battery, Linked Steering Wheel, (Without Charger & Battery)
Equiped Electronics
Remote Control
Motor & ESC
HV Digital Servos
Lights Set
RC Channels Setting
Dumbo: DDF-350+X10FG, 10Channels, 2.4GHz
Colorful Digital LED Display With Gyroscope
MC 775 Brushed Motor; Hobbywing 880 (BEC7.4V)
Customized Motor 21000rpm, HV Water-proof ESC
TH1623 Steering Servo*1, 23kg; TH1036 Controlling Servos*4(Shifts, 2 Diff Locks, Driving Modes),4kg
Simulation Light Kit
SMT+LED
CH1: Steering; CH2: Throttle; CH3: Lights; CH4: High/Low Speed; CH7: FWD/4WD/RWD; CH9: Front Diff;
CH10: Rear Diff; CH5-6-8: DIY (Channel Setting Can Be Changed By Your Preference )
